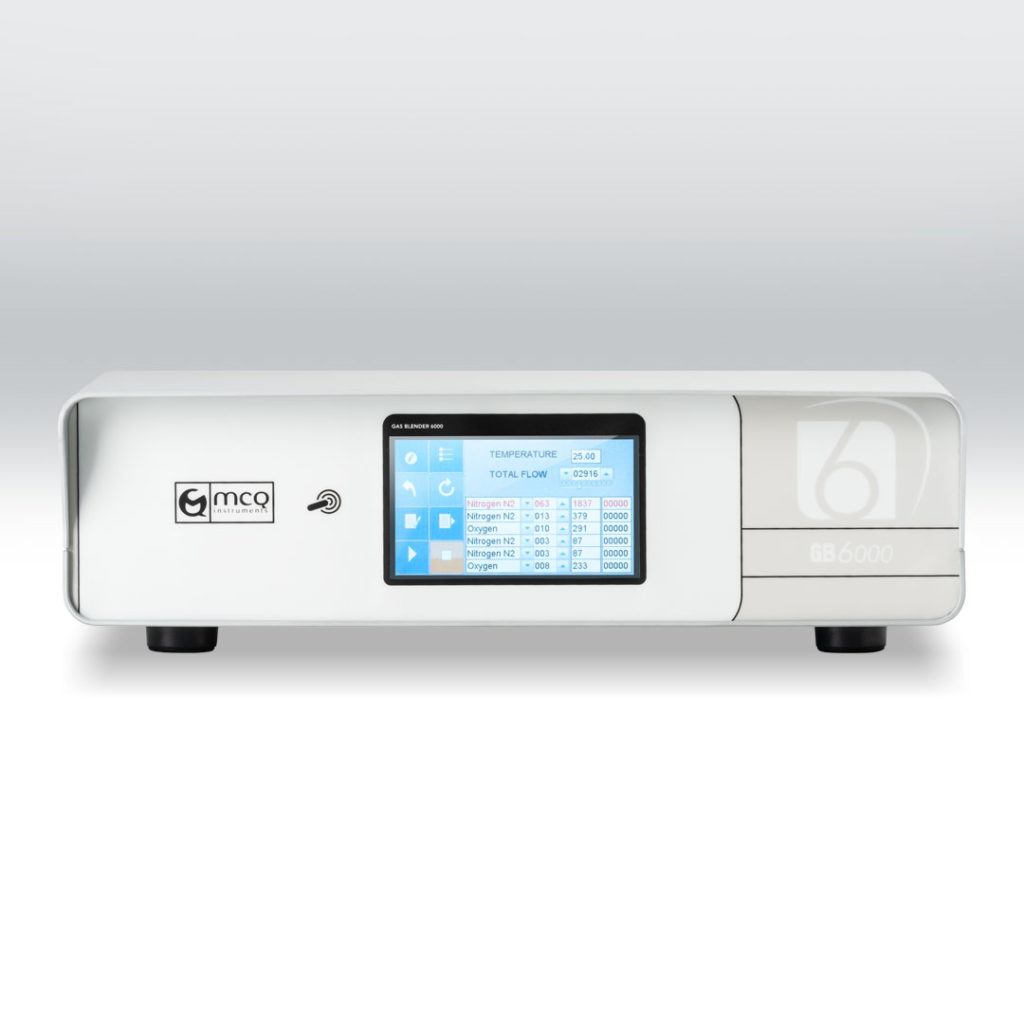

The up to 6-channels compact solution for medium flows gas mixing. Specifically designed for blending non-aggressive gases. A whole laboratory in a single box, compact, cost-effective, highly accurate, fast, software included and USB connected.
Forget the obsolte Mass Flow Controller system, the tubing aggregations, the power units and all the usual complications. Gas Blender 6000 Series is fast, easy to connect and to integrate in other systems, touch screen, software included, automated, accurate and modular.
N2, O2, CO2, CH4, Air (additional gases supported on request)
• Accuracy: (for each channel) N2, 20 ºC, 101.325 kPa (1 atm): 1% of FS
• Repeatability: 0,10% of reading
• Response time: (for each channel) 500 ms
• Power Supply: In Bundle
• Operation Pressure: Max 3 bar
• Working Temperature: 0 – 50 °C
• Mass Flow Rates: (for each channel) 0 – 5000 mL/min (standard)
• Total Mixture Flow Rate: Up to 30 L/min
• Gases: N2, O2, CO2, CH4, Air, He, H2. (additional gases supported on request)
• Compatibility: Profibus, Modbus, Matlab Simulink
• Communication: USB PC Interface RS485 with open proprietary protocol.
• Fittings: Swagelok NPT or Push-in fittings for 6-4mm tubes. Other on request
• Inlet Gas Channel: 6 Inputs
• Outlet Gas Channel: 1 Output of mixed gases
• User Interface: Gas mixing software. Touch Display.
• Certifications: CE, TUV, cTUVUS, Made in Italy
The .FREE Version of the software manager is an integrated component of the instrument. You can easily manage all the functions and regulate the flows. You can also save and load the mixtures providing a full automation.
