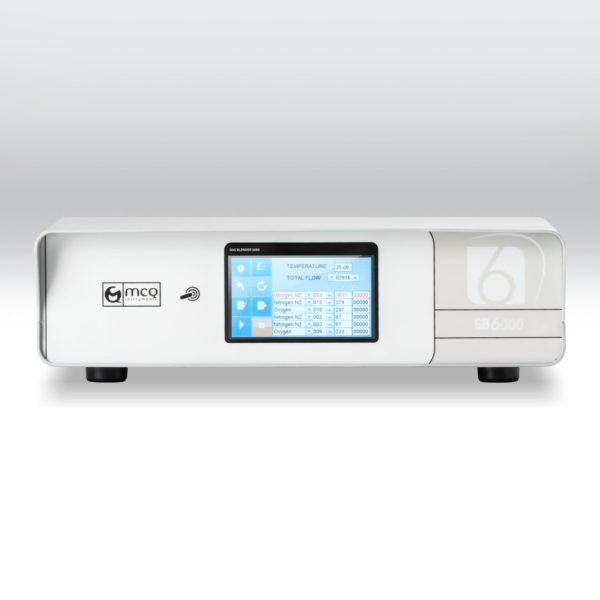

Medium Flow Gas Mixer – GB6000 Series

$38,622

Register for your COUPON CODE. You will get 10% off!



MAIN FEATURES:

  • 6 inputs/sources of gas and 1 output/mixture.
  • No CUT-OFF!
  • Full control over 0-5000 mL/min per channel
  • Touch screen & bundled software (.FREE Version).
  • Space-saving. A whole laboratory reduced in a box.
  • Easy to connect and install. Profibus, Modbus, Matlab Simulink compatible.
  • The most accurate and fastest device on the market.



N2, O2, CO2, CH4, Air (additional gases supported on request)



Category: Tags: ,

6-Channels Gas Blender 6000 Series



• Accuracy: (for each channel) N2, 20 ºC, 101.325 kPa (1 atm): 1% of FS

• Repeatability: 0,10% of reading

• Response time: (for each channel) 500 ms

• Power Supply: In Bundle

• Operation Pressure: Max 3 bar

• Working Temperature: 0 – 50 °C

• Mass Flow Rates: (for each channel) 0 – 5000 mL/min (standard)

• Total Mixture Flow Rate: Up to 30 L/min

• Gases: N2, O2, CO2, CH4, Air, He, H2. (additional gases supported on request)

• Compatibility: Profibus, Modbus, Matlab Simulink

• Communication: USB PC Interface RS485 with open proprietary protocol.

• Fittings: Swagelok NPT or Push-in fittings for 6-4mm tubes. Other on request

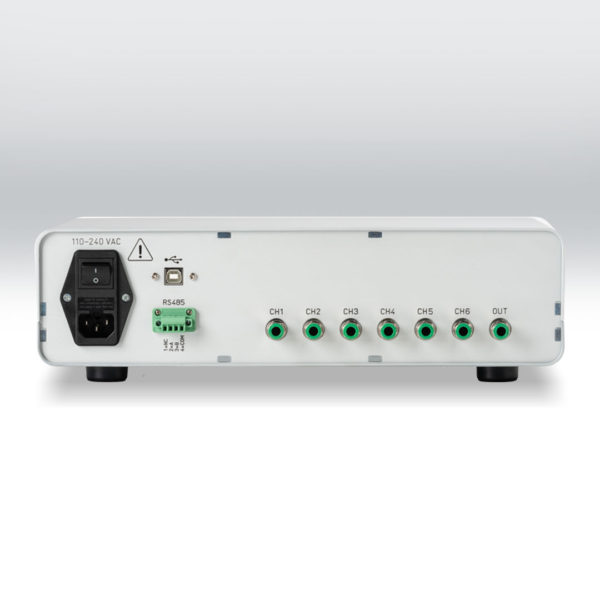

• Inlet Gas Channel: 6 Inputs

• Outlet Gas Channel: 1 Output of mixed gases

• User Interface: Gas mixing software. Touch Display.

• Certifications: CE, TUV, cTUVUS, Made in Italy
