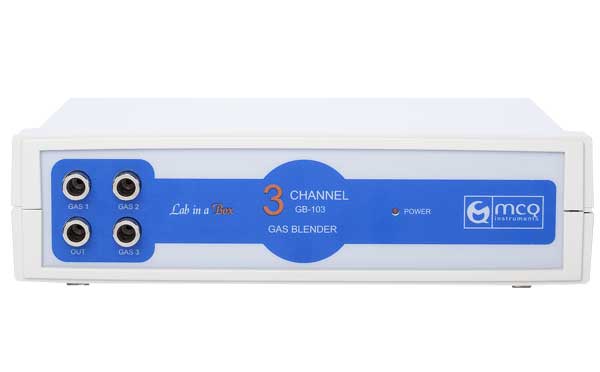

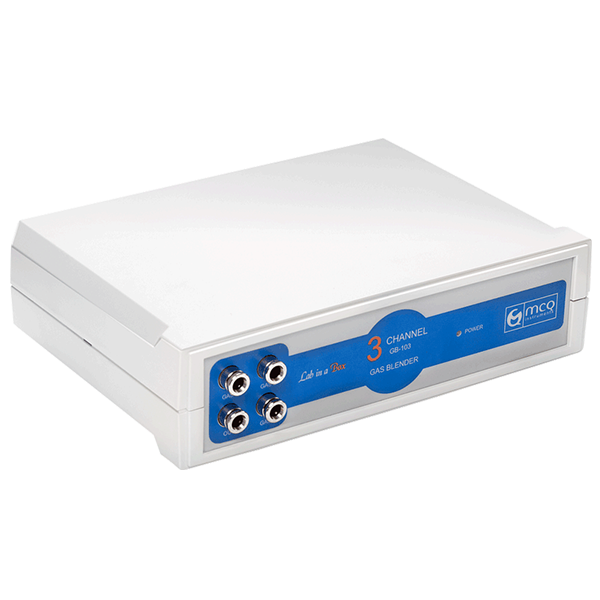

The 3-channels compact solution for low flows gas mixing. Specifically designed for blending non-aggressive gases. A whole laboratory in a single box, compact, cost-effective, highly accurate, fast, software included and USB connected.
This revolutionary instrument currently helps many of the most relevant universities and companies around the globe. Bring forward your experiments, calibrations and manage gas mixtures with a single click!
N2, O2, CO2, CH4, Air (additional gases supported on request)
• Accuracy: (for each channel) N2, 20 °C, 101.325 kPa (1 atm) 5 – 100% FS: 1% of setpoint < 5% FS: 0,2% of FS
• Repeatability: 0,16% of reading
• Response time: (for each channel) 50 ms
• Power Supply: 16-36 V DC – Min. 1,5 A
• Operation Pressure: Max 25 psi
• Working Temperature: 0 – 50 °C
• Mass Flow Rates: (for each channel) 0 – 500 mL/min (standard); 0 – 200 mL/min (on request)
• Total Mixture Flow Rate: Up to 1,5 L/min
• Gases: N2, O2, CO2, CH4, Air, (additional gases supported on request)
• Communication: USB PC Interface, BUS RS 485 (*). Connect up to 64 Gas Blenders to obtain different mixing and blending solutions.
(*) Function for future use. At the moment not active.
• Fittings: Push-in fittings for 6-4 mm tubes. Other on request
• Inlet Gas Channel: 3 Input
• Outlet Gas Channel: 1 Output of mixed gases
• User Interface: Gas mixing software. 1 LED signal interface
• Certifications: CE, TUV, cTUVUS, Made in Italy
The .FREE Version of the software manager is an integrated component of the instrument. You can easily manage all the functions and regulate the flows. You can also save and load the mixtures providing a full automation.
